BRAZED HEAT EXCHANGER

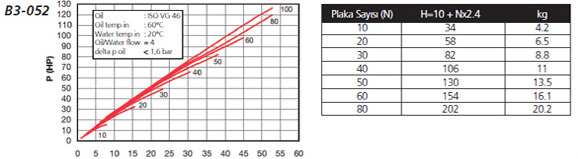

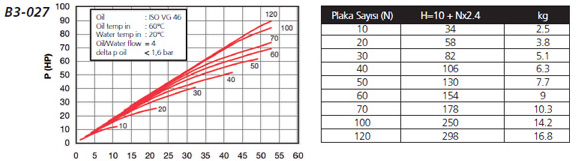

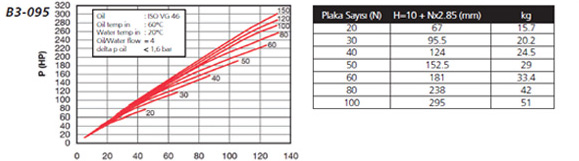

The cooling capacity is also dependent on the viscosity class. At a lower viscosity class the cooling capacity increases, at a higher viscosity class it decreases.

In order to make an accurate calculation, the following details are required:

• type of oil
• premissable tank temperature
• required outlet temperature of the oil or necessary cooling capacity
• inlet temperature of the water and maximum water quantity.

Selection Program
The cooler selection program calculates the correct heat exchanger in the case of non-standard operating data. Please contact our technical sales department.
