BRAZED HEAT EXCHANGER
General Information

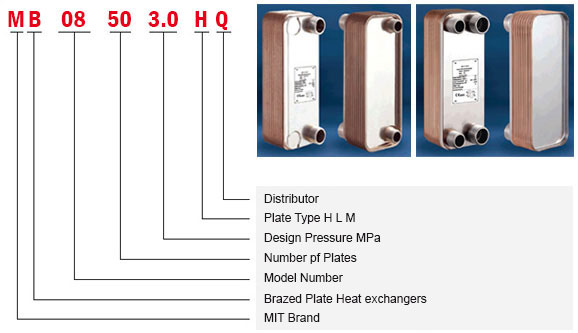

Expression of Brazed Plates
MIT Brazed Plate Heat Exchangers can be designed with plates having different heat transfer charecteristics.
MIT Brazed Plate Heat Exchangers can be designed width plates having different heat transfer characteristics.
The H Type plate obtuse angles which result in higher heat transfer efficieny by increasing the turbulence of the fluid.
The L Type plate has acute angles. This reduces the pressure drop and leads to reduced turbulence and lower heat transfer efficieny.
The M Type plate is combination pf L and H plates. This solution can be used for applications, where the temperature change on one side of the BPHE is much larger than on the other.
